- Detailed Description
Power Supply For UV Light Smart UV Sterilizer HMGA 29KW-40KW
Smart UV Sterilizer HMGA 28KW-50KW UV Lamp Powers — Intelligent and Stepless:
| Input Section | |
| Main Input Voltage | 360~440Vac |
| Frequency | >47Hz |
| COS∅ | 1 |
| Power Factor | 0.96 |
| THD （current） | 30% |
| Efficiency | Typ.>94% |
| Output Section | |
| Working Frequency | Variable from 6Khz to 16Khz |
| Ignition Voltage | >4000Vpp |
| Ignition Frequency | 270Khz |
| Max. Output Power | 29~40Kw(40℃ ambient Temp) |
| Output Voltage | Up to 3000Vac |
| Output Current | Up to 25A |
| Control Port | MODBUS/Analog and Digital I/O |
| Lamp Monitoring | Voltage/current/powerr/status code /error code |
| Protections | Input under/over Voltage； |
| Phase Loss | |
| Output Open/Short | |
| Output Over voltage | |
| Over Temperature | |
| Ground & Leakage Fault | |
| Auxiliary Section | |
| Voltage | 21Vdc-30Vdc |
| Current | 1.5Adc |
| Working Environment | |
| Max. ambient Temperature | 40℃(up to 1000meters Sea Level) |
| Max. Humidity | <80% |
| Protection Class | IP20 |
| Cooling | Forced Air Cooling |
| Dimension (LWH)mm | 785*300*395 |
| Weight | 52Kg |

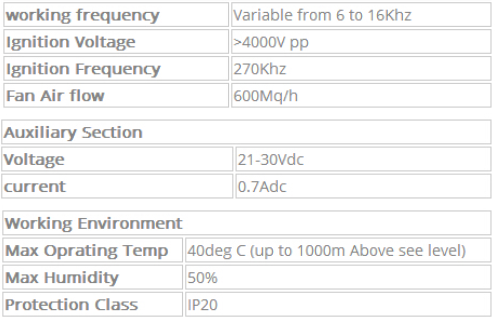

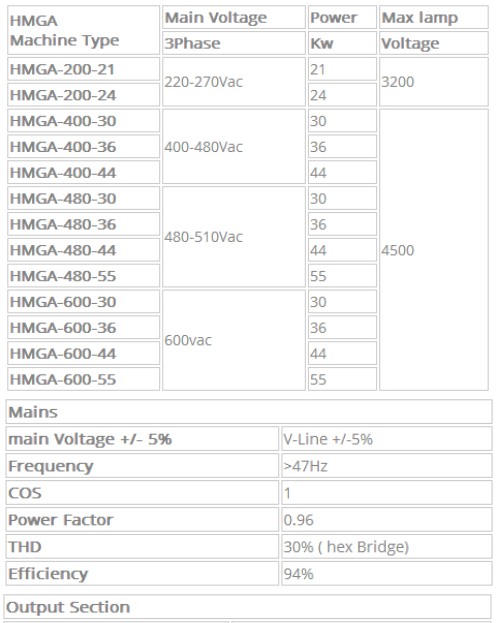

Detailed Specifications:
Electric Connection:
Documents Downloading:
PDF Catalog: Catalogue
Owner’s Manual: Owner Manual, Owner Manual 2023
Remote Controler Installation Chart: Remote Control Installation
Mode 1 Manual: Manual – MODE_1
