- Detailed Description
Electronic Ballast For Low UV Lamp 1~11KW
Intelligent and Stepless:
| Input Section | |
| Main Input Voltage | 360~480Vac |
| Frequency | >47Hz |
| COS∅ | 1 |
| Power Factor | 0.96 |
| THD | 30%（Hex Bridge） |
| Efficiency | Typ.>94% |
| Output Section | |
| Working Frequency | 2.5kHz |
| Ignition Voltage | >4000Vpp |
| Ignition Frequency | 270Khz |
| Max. Output Power | 8.1Kw(55℃ ambient Temp) |
| 1~11Kw(40℃ ambient Temp) | |
| Output Voltage | <450V |
| Output Current | Up to 25A |
| Control Port | MODBUS/Analog and Digital I/O |
| Lamp Monitoring | Voltage/current/power/status/error code |
| Protections | Input under/over Voltage； |
| Phase Loss | |
| Output Open/Short | |
| Output Over voltage | |
| Over Temperature | |
| Ground /Leakage Fault | |
| Auxiliary Section | |
| Voltage | 21Vdc-30Vdc |
| Current | 2.5Adc |
| Working Environment | |
| Max. ambient Temperature | 40-55℃(up to 1000meters Sea Level) |
| Max. Humidity | <80% |
| Protection Class | IP20 |
| Cooling | Forced Air Cooling |
| Dimension (LWH)mm | 518*160*128 |
| Weight | 10Kg |

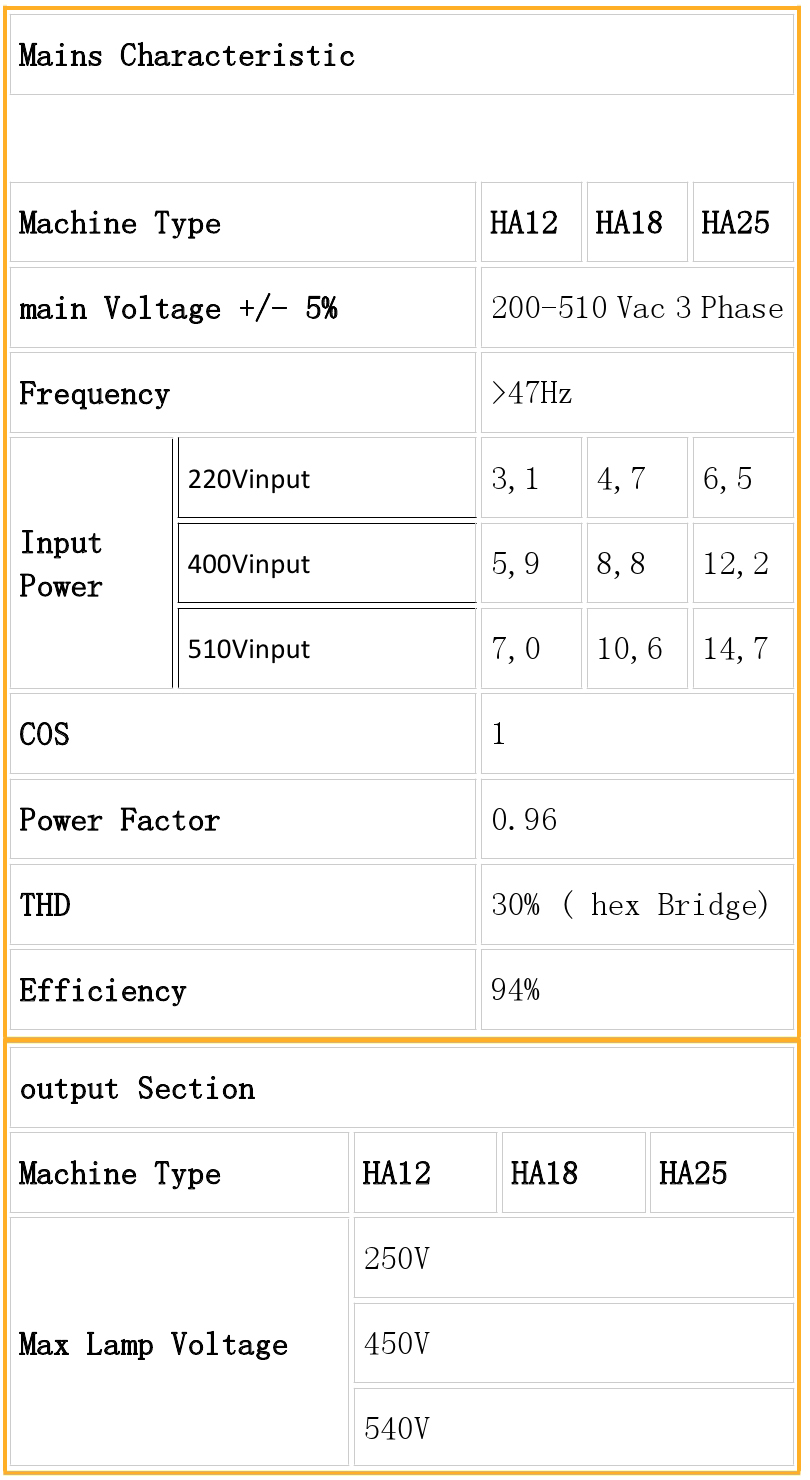

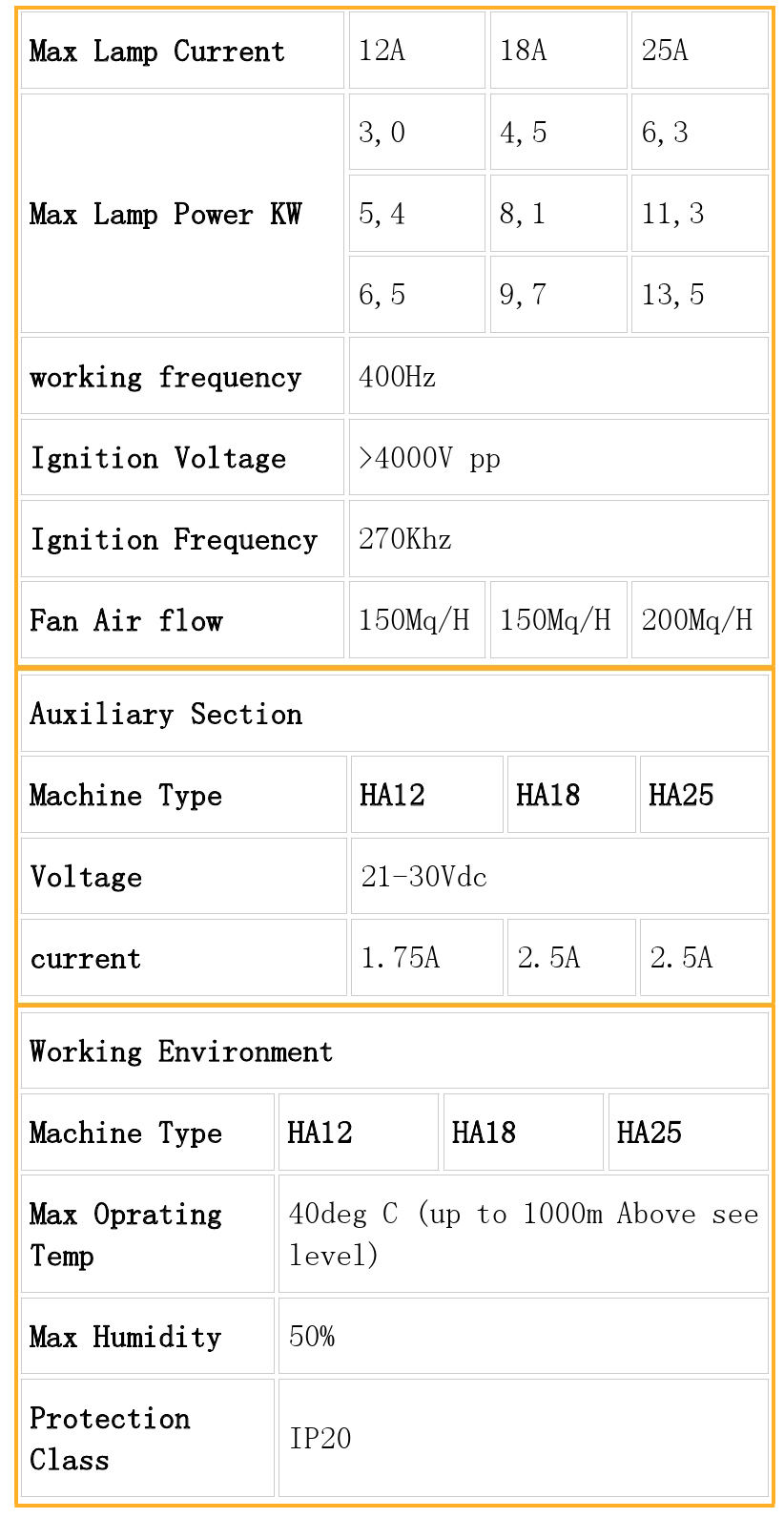

Detailed Specifications:
Electric Connection:
Documents Downloading:
PDF Catalog: Catalogue
Owner’s Manual: Owner Manual, Owner Manual 2023
Remote Controler Installation Chart: Remote Control Installation
Mode 1 Manual: Manual – MODE_1
