- Detailed Description

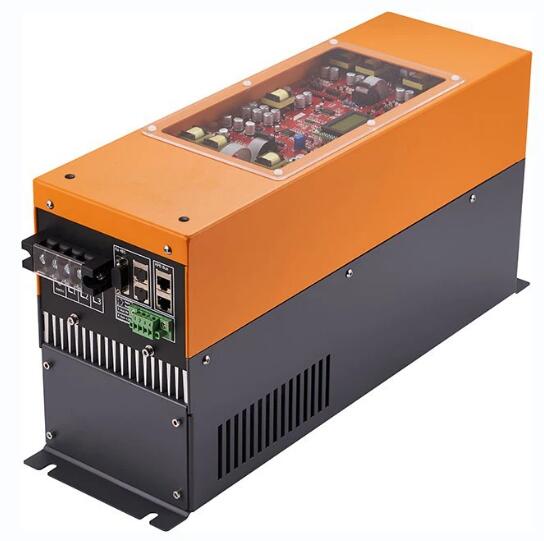

UV Mercury Lamp Power Supply HUTA 10~14KW
Main Input Voltage: 360~440Vac
Frequency: >47Hz
COS∅: 1
Power Factor: 0.96
| Input Section | |
| Main Input Voltage | 360~440Vac |
| Frequency | >47Hz |
| COS∅ | 1 |
| Power Factor | 0.96 |
| THD | 30% |
| Efficiency | Typ.>94% |
| Output Section | |
| Working Frequency | Variable from 6Khz to 16Khz |
| Ignition Voltage | >4000Vpp |
| Ignition Frequency | 270Khz |
| Max. Output Power | 14Kw(40℃ ambient Temp) |
| Output Voltage | Up to 1800Vac |
| Output Current | Up to 25A |
| Control Port | MODBUS/Analog and Digital I/O |
| Lamp Monitoring | Voltage/current/power/status code/error code |
| Protections | Input under/over Voltage；
Phase Loss Output Open/Short Output Over voltage Over Temperature Ground & Leakage Fault |
| Auxiliary Section | |
| Voltage | 21Vdc-30Vdc |
| Current | 3.0Adc |
| Working Environment | |
| Max. ambient Temperature | 40℃(up to 1000meters Sea Level) |
| Max. Humidity | <80% |
| Protection Class | IP20 |
| Cooling | Forced Air Cooling |
| Dimension (LWH)mm | 530*160*252 |
| Weight | 20Kg |
Features：
● High Frequency and Square-Wave power output to get more UV output
● Tunneling ignition (Patent technology) and easy to ignite the lamp
● Micro-processor dynamic control technology to get more efficiency and stability
● Amplitude technology to regulate the power control from 10% to 100%(based on lamp character)
● Control Interfaces: MOD BUS RS485 and Analog &Digital interface
● Compact design to get small size and lower weight
Applications:
● UV Curing
● UV Coating and Bonding
● UV Sterilization & Disinfection
● UV Photochemical Catalysis
● UV Photolysis Oxidation
Detailed Specifications:

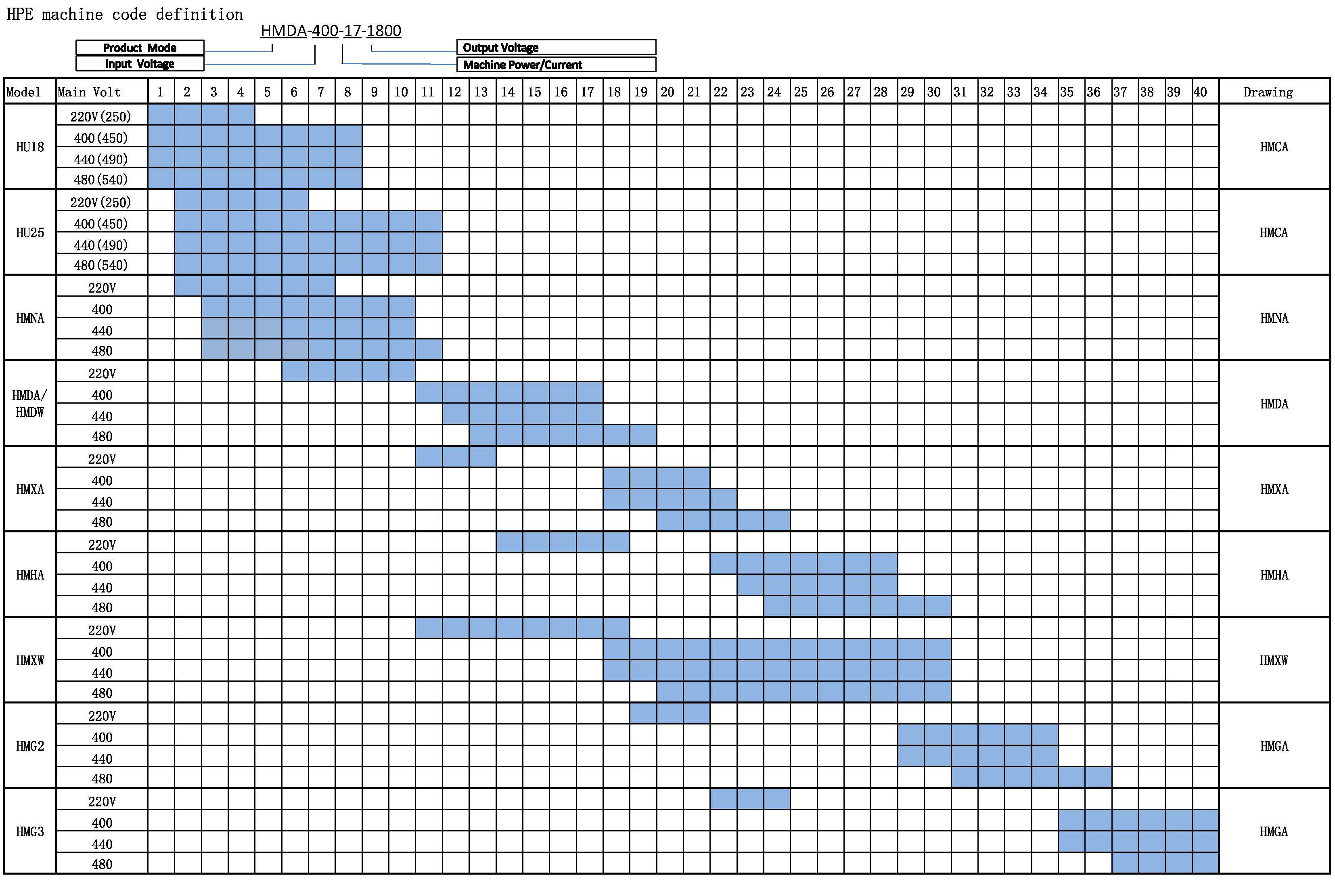

HPE Power Ballasts
Electric Connection:
Documents Downloading:
PDF Catalog: Catalogue
Owner’s Manual: Owner Manual, Owner Manual 2023
Remote Controler Installation Chart: Remote Control Installation
Mode 1 Manual: Manual – MODE_1
